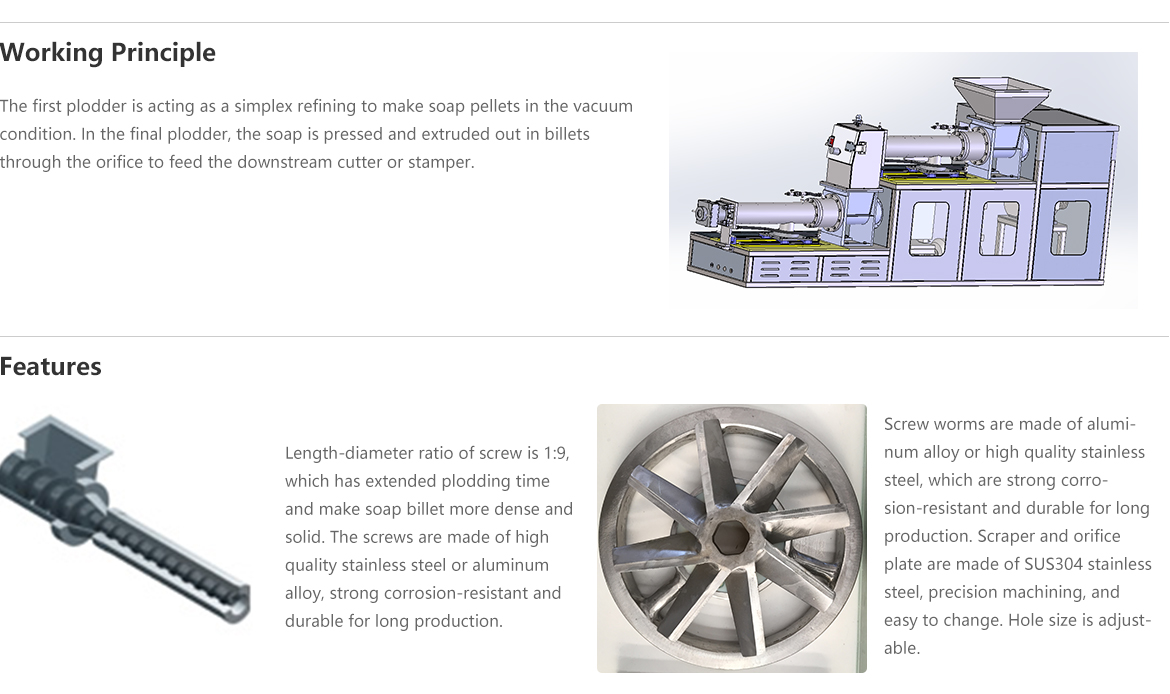

1:9 Series Vacuum Plodder has two stages, driven by independent transmission system. The length-diameter ratio of screw can be 1:9.The first plodder is acting as a simplex refining to make soap pellets in the vacuum condition. In the final
Specifications
|
Model |
JZT1000 |
JZT2000 |
JZT3000 |
|
Production Capacity(kg/h) |
800-1000 |
1500-2000 |
3000 |
|
Screw Outer Diameter(mm) |
(250-160)/(250-160) |
(300-200)/(300-200) |
(350-250)/(350-250) |
|
Screw Speed(rpm) |
37/37 |
40/40 |
37/37 |
|
Power(kW) |
30/30 |
45/45 |
55/55 |
|
Overall dimension(mm) |
3430*931*1355 |
6586x1980x2716 |
6860x1540x2045 |
|
Weight(kg) |
3900 |
3900 |
9000 |
